Produktinformation

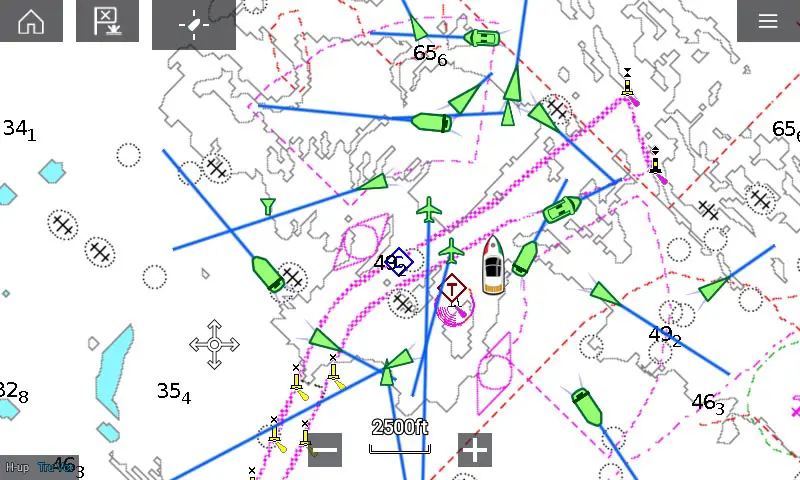

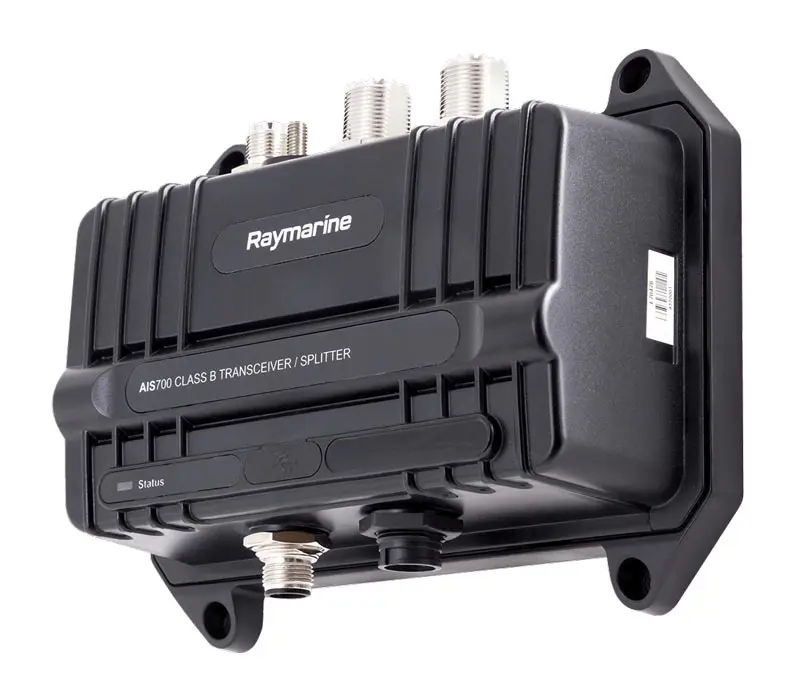

Raymarine's AIS 700 er en Klasse B transponder, med indbygget splitter, der sender dine data,så andre skibe med AIS kan se dig på deres kortplotter og du kan se dem.
Nøglefunktioner

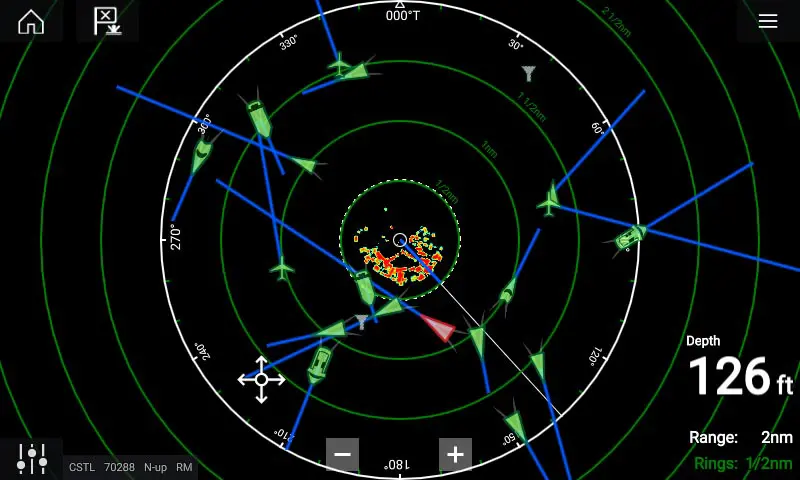

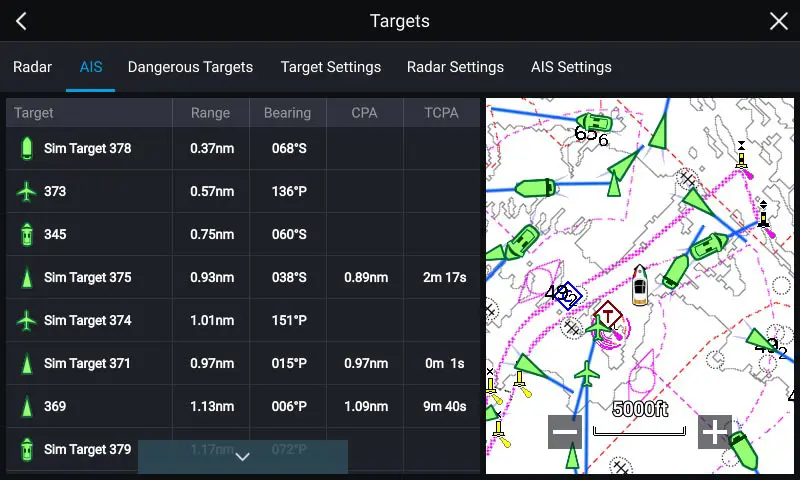

Fuld udsendelse og modtagelse af AIS for forbedret situationsopmærksomhed og sikkerhed
Seneste SO TDMA-netværk for længere rækkevidde og hurtigere ydelse
Indbygget antennesplitter forenkler installationen med eksisterende VHF-radioantenne
NMEA2000, NMEA0183, PC og SeaTalkng kompatibel
Kan skifte til og fra lydløs tilstand via software eller hardware for øget sikkerhed, når det er nødvendigt

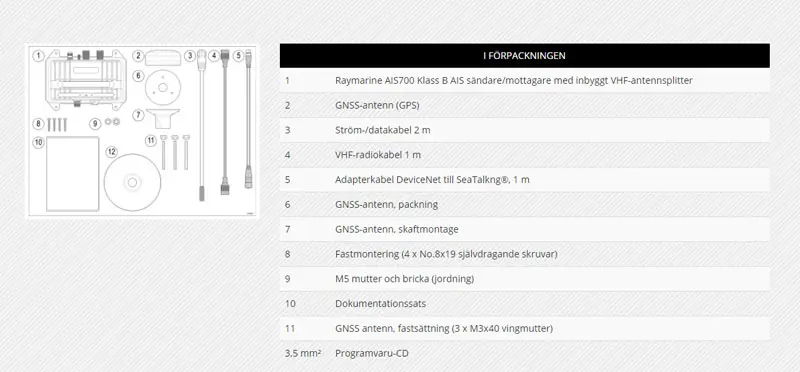

Raymarine AIS700 Klass B AIS sendere/modtagere med indbygget splitter
GNSS-antenn (GPS)
Strøm-/datakabel, længde 2m
VHF-radiokabel, længde 1m
Adapterkabel DeviceNet til SeaTalkng, længde 1m
GNSS-antenn, pakning
GNSS-antenn, skaftmontage
Sjælvdragande skruer, antal 4st
Møtrik og skive M5 (jordning)
Dokumentation
GNSS-antenn, vingemøtrik M3, antal 3st
Programvaru-CD
Specifikationer
Operating temperature -15°C to +55°C
Storage temperature -20°C to +75°C
Water ingress IPX6 and IPX7
Humidity Up to 93% @ 40°C
POWER SPECIFICATIONS
Power Soply 12v and 24 nominal
Power Consumption <3W
Peak current 3A
Load Equivalency Number 1 LEN
RF SPECIFICATIONS
DSC Receiver Implemented by time sharing with one TDMA receiver
Receiver 1 band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Receiver 2 band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter specification To meet IEC 62287-2 relevant sections
Receiver specification To meet IEC 62287-2 relevant sections
Transceiver specification To meet IEC 62287-2 relevant sections
GPS receiver u-blox MAX-M8W
GPS receiver channels 72 channels
GPS Cold start acquisition time 26s nominal
ANTENNA SPLITTER SPECIFICATIONS
Operating frequency range 156.0MHz to 162.025MHz Transmidtering 156.0MHz to 174.0Mhz Receiving
Insertion loss AIS RX path 0dB
Insertion loss AIS TX path <1dB
Insertion loss VHF RX path 0dB
Insertion loss VHF TX path <1dB
Power handling AIS port Maximum 5W input
Power handling VHF port 25W input
Switching time RX to VHF TX 10uS Max
Switching time RX to AIS TX 10uS Max
Switching time VHF TX to AIS TX 10uS Max
Switching time any TX to RX 10uS Max
VHF port impedance 50 Ohms
AIS port impedance 50 Ohms
Antenne port impedance 50 Ohms
VHF to AIS port isolation >28dB (both directions)
Minimum VHF input power for switching 400mW
eksternAL CONNECTIONS
VHF antenna connector type SO-239 co-axial
VHF radio connector type SO-239 co-axial
GNSS antenna connector 50 TNC co-axial
NMEA2000 DeviceNet male
USB Micro-B
eksternal interface isolation NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power soply as required by the relevant interface specification.
NMEA0183 interface 1 (MFD connection) NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS.
NMEA0183 interface 2 (NMEA0183 instrument connection) NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate
USB interface (PC connection) Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud
